Gaskets for fertilizer, ammonia and hydrogen plants
Ammonia, urea and nitric acid plants combine high-pressure synthesis loops, hot hydrogen and strong acids. Green hydrogen adds electrolysers, compressors and storage at high pressure. Every one of these services punishes a poorly chosen gasket. We supply QGER gaskets matched to pressure class, temperature and media for each unit.
Request a quoteWhere our gaskets are used
| Representative image | Gasket / seal | Fertilizer / ammonia / hydrogen use | Typical construction | Representative plant applications | Typical standards / specifications |
|---|---|---|---|---|---|
 | Spiral Wound Gasket - QSW4 | Severe high-pressure/high-temperature flange sealing where hydrogen, synthesis gas or ammonia service demands an inner ring to protect the winding and control inward buckling. | Profiled metallic winding with graphite, PTFE or mica filler plus metallic inner and outer rings. | Hydrogen compressor discharge/interstage piping; ammonia synthesis loops; high-pressure syngas; high-class reactor and converter connections; pressure-vessel piping; ammonia transfer where raised-face high-pressure flanges are used. | ASME B16.20; mating flanges ASME B16.5 / B16.47; ASME B31.3 for process piping; ASME B31.12 for hydrogen industrial piping where applicable; ASME PCC-1 or project bolted-joint procedure for assembly. |
| Spiral Wound Gasket - QSW3 | General raised-face process-piping sealing with centering and compression control across fertilizer, ammonia and hydrogen balance-of-plant systems. | Profiled metallic winding with graphite or other compatible filler and metallic outer centering/compression ring. | Sulfuric/phosphoric-acid utilities; steam and condensate; cooling water; low-to-medium pressure ammonia auxiliaries; hydrogen balance-of-plant; process air and general plant piping. | ASME B16.20; ASME B16.5 / B16.47 for mating flanges; ASME B31.3 for chemical/fertilizer process piping; hydrogen lines may additionally invoke ASME B31.12. |
 | Camprofile / Kammprofile Gasket | Severe-service sealing with high recovery where temperature, pressure, thermal cycling or limited bolt load makes a grooved metal-core gasket advantageous. | Grooved metallic core with graphite or PTFE facing; guide ring depending on flange arrangement. | Ammonia converters and synthesis equipment; hydrogen process vessels; high-pressure heat exchangers; sulfuric/phosphoric-acid units; reformer/syngas auxiliaries; cyclic process equipment. | ASME B16.20 for grooved metal gaskets with covering layers; ASME B16.5 / B16.47 flange interfaces; EN 1514-6 where EN/PN flanges are specified; equipment/OEM drawing governs specials. |
| Urea-Grade Kammprofile / PTFE-Enveloped Camprofile Gasket | Severe corrosion-resistant flange and equipment sealing in high-pressure urea synthesis service, especially where hot ammonium carbamate, ammonia, CO2 and concentrated urea solutions create exceptionally aggressive corrosion conditions. | Precision-machined grooved/serrated metallic core in licensor-approved urea metallurgy such as 316L Urea Grade (UG) or 25-22-2 / 310MoLN / UNS S31050 / EN 1.4466. Soft sealing may use PTFE/ePTFE or a full PTFE envelope to isolate the metallic core from aggressive media, strictly as specified by the urea licensor or equipment OEM. | Urea reactors; high-pressure strippers; carbamate condensers; high-pressure scrubbers; high-pressure synthesis-loop vessel connections; carbamate/urea equipment flanges; selected stripper and condenser nozzles where the licensor specifies a camprofile-type seal. | Urea-licensor / OEM specification governs (Stamicarbon, Saipem/Snamprogetti, Urea Casale, thyssenkrupp Uhde, TOYO or project-specific requirements as applicable). ASME B16.20 for grooved-metal gaskets with covering layers where applicable; ASME B16.5 / B16.47 for flange interfaces; ASME B31.3 at process-piping level; ASME BPVC Section VIII for applicable pressure equipment. Urea-grade stainless may also require licensor-specified corrosion qualification; ASTM A262 Practice C is a nitric-acid intergranular-corrosion test used for austenitic stainless steels where specified. |
 | Metal-Jacketed / Heat-Exchanger Gasket | Seals shell-and-tube exchangers and large process equipment where a metallic shell protects a resilient filler and pass-partition ribs may be required. | Thin metallic jacket enclosing graphite or other resilient filler; single/double-jacketed and ribbed configurations. | Ammonia synthesis and refrigeration exchangers; syngas coolers; condensers; phosphoric/sulfuric-acid heat exchangers; waste-heat boilers; evaporators; process coolers and reboilers. | ASME B16.20 where applicable; API 660 / TEMA for shell-and-tube exchangers where adopted; ASME BPVC Section VIII for pressure-vessel exchangers; equipment drawing controls geometry. |
 | Ring Type Joint (RTJ) - R / RX / BX | Metal-to-metal sealing for very high-pressure/high-temperature connections where ring-joint flanges are specified. | Precision-machined metallic R, RX or BX ring in carbon, alloy or stainless steel selected for service conditions. | High-pressure hydrogen compression; ammonia synthesis loops; syngas and reformer compressor systems; high-pressure reactors; specialty valves; storage/compression systems using ring-joint flanges. | ASME B16.20; API 6A / ISO 10423 where API ring-joint interfaces are used; mating flange specification governs; ASME B31.3 / B31.12 at piping-system level as applicable. |
 | Solid Metal / Metal-Core Gasket | Extreme pressure/temperature or special-equipment sealing where conventional soft gasket materials are unsuitable. | Solid metal or rigid metal core, optionally faced with expanded graphite or ePTFE. | Ammonia converter and reformer equipment; compressor/turbine casings; high-temperature hydrogen/syngas equipment; pressure-vessel covers; specialty reactor joints and OEM equipment. | ASME B16.20 where applicable; special designs controlled by purchaser/OEM drawings; ASME BPVC Section VIII where used on pressure equipment; material compatibility must be verified for hydrogen duty. |
 | Flexible Graphite Gasket | High-temperature static sealing with strong recovery and broad chemical resistance for steam, hot process gas and many fertilizer-plant media. | Flexible/expanded graphite with or without reinforcement or metallic insertion; ring or custom-cut shape. | Steam and condensate; hot ammonia-process auxiliaries; sulfuric-acid plant utilities; valve bonnets; manways; compressors; heat exchangers and high-temperature process flanges. | ASME B16.21 for nonmetallic flat gaskets where applicable; EN 1514-1 for PN flanges; ASME B31.3 at process-piping level; purchaser purity/oxidation requirements may also apply. |
 | Graphite Pressure-Seal / Cover-Seal Ring | Self-energizing sealing for pressure-seal valve bonnets and other self-sealing covers under severe pressure and temperature cycling. | Preformed high-density flexible graphite ring or cover-seal profile compressed by system pressure and bonnet geometry. | High-pressure ammonia/hydrogen valves; synthesis-loop isolation valves; high-pressure steam and process services; self-sealing covers on pressure equipment. | ASME B16.34 and valve/OEM specification for pressure-containing valve assemblies; API 600 / API 623 where those valve types are specified; ASME B31.3 or B31.12 at piping-system level. |
 | PTFE / ePTFE Flat Gasket | Chemically resistant sealing for strong acids, caustics, fertilizer chemicals and low-stress flanges where PTFE compatibility is appropriate. | Virgin/filled PTFE, restructured PTFE or 100% expanded PTFE flat gasket. | Phosphoric and sulfuric acid systems; chlorides/chemical dosing; demineralized-water and electrolyzer auxiliaries; alkaline-electrolyzer balance-of-plant; glass-lined/FRP interfaces; aggressive cleaning systems. | ASME B16.21; EN 1514-1 for PN flanges; ASME B31.3 at process-piping level. Hydrogen-generator system safety may invoke ISO 22734-1:2025; material compatibility/permeation requirements govern final selection. |
| PTFE Envelope / Filter Gasket | Combines broad chemical resistance with a compressible core and low contamination risk in strong-acid, caustic and filtration service. | PTFE envelope around compressed non-asbestos fibre or flexible graphite core; standard or custom geometry. | Phosphoric-acid filtration; sulfuric-acid systems; fertilizer process filters; glass-lined reactors; acid/caustic chemical skids; selected electrolyzer chemical-treatment equipment. | ASME B16.21 where standard flat-gasket dimensions apply; EN 1514-1 for compatible PN flanges; filter/equipment OEM drawings govern proprietary shapes; ASME B31.3 for associated process piping. |
 | CNAF / Compressed Fibre Gasket | General-purpose sealing for water, air, oils, low-pressure steam and mild chemical/utility services. | Compressed non-asbestos fibre sheet made from synthetic/inorganic fibres, fillers and elastomeric binder. | Cooling and process water; compressed air; lubrication skids; low-pressure steam; fertilizer handling utilities; pumps, valves and general plant piping. | ASME B16.21; EN 1514-1; purchaser/OEM material specification; ASME B31.3 at process-piping level where applicable. |
 | EPDM / NBR / FKM / FFKM Elastomeric Gasket | Flexible low-to-medium pressure sealing where water, ammonia-adjacent utility fluids, oils or chemicals require a service-specific elastomer. | Cut or molded full-face/ring gasket in EPDM, NBR, FKM/Viton, silicone, SBR or FFKM; reinforcement may be added. | Cooling water; demineralized water; chemical dosing; hydraulic/pneumatic systems; ammonia refrigeration auxiliaries; electrolyzer cooling and water-treatment systems; pumps and skids. | ASME B16.21; EN 1514-1; ISO 3601 series where O-ring geometry is used. Compound compatibility, temperature, permeability and decompression resistance must be verified for hydrogen/ammonia exposure. |

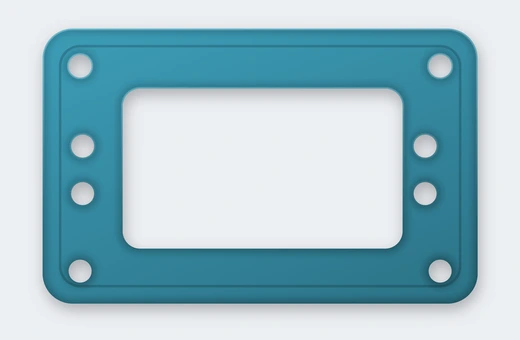

 | Electrolyzer Stack / Cell Gasket | Separates hydrogen, oxygen and electrolyte/water paths inside electrolyzer stacks while maintaining electrical and fluid isolation under compression cycling. | Precision-cut or molded PTFE/ePTFE, EPDM, FKM/FFKM or other OEM-qualified polymer/elastomer profile; geometry depends on alkaline, PEM or AEM stack design. | Alkaline, PEM and AEM electrolyzer stacks; bipolar-plate/perimeter sealing; water/electrolyte manifolds; hydrogen and oxygen separation interfaces. | Electrolyzer-OEM drawing/material specification is primary. ISO 22734-1:2025 applies at hydrogen-generator system safety level. ISO 3601 may apply only where O-ring geometry is used. Hydrogen permeation, purity and electrochemical compatibility must be qualified. |
 | ePTFE Gasket Tape / Joint Sealant | Form-in-place sealing for large, irregular, damaged or non-standard equipment flanges exposed to aggressive fertilizer chemicals. | 100% expanded PTFE tape or cord compressed in place around the flange, manway or equipment cover. | Large acid tanks; fertilizer reactors; phosphoric/sulfuric equipment; glass-lined vessel nozzles; filter housings; large process flanges and manways; non-standard maintenance repairs. | Equipment/OEM drawing and pressure-vessel requirements govern geometry; ASME PCC-1 or project bolted-joint procedures may govern assembly; ASME B31.3 applies to associated process piping. |
 | Flange Insulation Kit / Insulating Gasket | Electrical isolation of flanged assemblies to control galvanic interaction or support cathodic-protection/isolation requirements. | High-strength insulating gasket plus full-length sleeves, insulating washers and steel washers for each bolt. | Hydrogen and ammonia transfer pipelines; storage/terminal piping; buried lines; dissimilar-metal interfaces; plant battery-limit isolation points and cathodically protected piping. | ASME B16.5 / B16.47 or other applicable flange dimensions; AMPP/NACE SP0286 where electrical isolation of cathodically protected piping is required; project corrosion-control specification governs. |
| Graphite / PTFE Compression Packing | Dynamic/static sealing around valve stems and selected pump or agitator shafts, including fugitive-emissions-sensitive ammonia and hydrogen-adjacent duties. | Preformed graphite rings or braided graphite/PTFE packing selected for temperature, chemical exposure and stem/shaft conditions. | Ammonia and hydrogen isolation/control valves; toxic process valves; sulfuric/phosphoric acid pumps; mixers; agitators; steam valves and chemical-service equipment. | API 622 for process-valve packing type testing; API 624 for rising-stem valves with graphite packing; API 641 for quarter-turn valves; ISO 15848-1 for industrial-valve fugitive-emissions qualification; OEM specification governs dimensions. |
 | Mechanical Seal | Controls leakage around rotating pump shafts in ammonia, hydrogen-plant auxiliaries, fertilizer chemicals and utility services. | Precision stationary/rotating seal faces with springs, secondary seals and single/dual arrangements selected for the process fluid. | Liquid ammonia pumps; process condensate; boiler-feed/cooling water; phosphoric/sulfuric acid pumps; chemical-transfer pumps; electrolyzer water/cooling systems; selected hydrogen-plant auxiliaries. | API 682 / ISO 21049 where an API-type pump shaft-sealing system is specified; API 610 / ISO 13709 for applicable heavy-duty centrifugal pumps; ISO 5199 / ISO 9905 or pump-OEM specification for other chemical-process pumps. |
 | Expansion Joint / Flexible Coupling | Absorbs thermal movement, vibration, pressure surges and misalignment in process piping and duct systems. | Engineered non-metallic/fabric or elastomeric flexible joint with flanged ends; metallic bellows may be used in other designs. | Sulfuric/phosphoric acid plant ducts and utilities; reformer/furnace and process-air systems; ammonia plant utilities; pump/compressor discharge; cooling-water headers; large-diameter process systems. | ASME B31.3 at piping-system level; FSA guidance and purchaser specification for non-metallic expansion joints; ASTM F1123 where arch-type rubber expansion joints are used; EJMA standards where metallic bellows are used. |
 | Pump Diaphragm | Flexible pumping barrier for acids, caustics, fertilizer additives, contaminated liquids and controlled chemical dosing. | ePTFE wetted face bonded to reinforced elastomer backing, or OEM-specific PTFE/elastomer diaphragm construction. | Acid/caustic transfer; antiscalant and chemical dosing; phosphoric/sulfuric acid auxiliaries; water-treatment skids; fertilizer additives; metering and filter-feed applications. | Pump OEM dimensional/material specification governs. API 675 applies to controlled-volume metering pumps where specified; it does not universally apply to air-operated double-diaphragm pumps. |
 | Precision O-Rings / Molded Elastomer Seals | Compact static and dynamic sealing in instrumentation, valve actuators, dosing equipment, compressors, pumps and hydraulic/pneumatic systems. | Precision-molded EPDM, NBR, FKM/Viton, silicone, FFKM or other specialty elastomer; backup rings may be added at higher pressure. | Hydrogen/analyzer systems; ammonia valve actuators; instrument fittings; dosing pumps; compressor auxiliaries; hydraulic/pneumatic skids; electrolyzer balance-of-plant and cooling systems. | ISO 3601-1 for O-ring dimensions/tolerances; ISO 3601-2:2025 for housing dimensions; ISO 3601-3 for quality acceptance; ISO 3601-4 for backup rings. Hydrogen/ammonia material compatibility and decompression/permeation qualification must be project-specific. |
 | Plate Heat-Exchanger Gasket | Seals individual plates and separates process streams in gasketed plate-and-frame heat exchangers. | Precision-molded EPDM, NBR, FKM/Viton or specialty elastomer perimeter gasket clipped or bonded to the plate. | Ammonia refrigeration and cooling; electrolyzer cooling and heat recovery; demineralized-water systems; fertilizer-process heating/cooling; water/glycol loops and utility exchangers. | Heat-exchanger OEM drawing/specification governs geometry and compound. API 667 may apply where adopted for plate-and-frame exchangers in petroleum/petrochemical-style service; otherwise project/OEM requirements control. Elastomer compatibility is service-specific. |
These are typical starting points. Final selection depends on your service conditions and is confirmed with QGER engineering before manufacture.
Points to watch
- For hydrogen service, state the design pressure and temperature. Hydrogen leaks through joints that hold other gases.
- With a PTFE filler, a spiral wound gasket needs an inner ring to prevent inward buckling.
- Give the exact acid and its concentration. The same acid at two strengths can need different materials.
Get the right gasket for your plant
Send us your drawing, standard, size and material. We reply promptly.
