Gaskets for water and desalination
Desalination and water plants handle seawater, brine and treatment chemicals around the clock. Chlorides attack ordinary steels, and drinking water lines need approved materials. We supply gaskets matched to both, from low-pressure mains to high-pressure reverse osmosis lines.
Request a quoteWhere our gaskets are used
| Representative image | Gasket / seal | Water / desalination use | Typical construction | Water / desalination applications | Typical standards / specifications |
|---|---|---|---|---|---|
 | EPDM Potable-Water Flange Gasket | Seals flanged potable-water, treated-water, seawater and low-pressure utility piping. | Cut EPDM full-face or ring gasket; reinforced EPDM may be used for larger sizes or higher loads. | Potable-water distribution; RO permeate and product-water lines; pretreatment; seawater intake auxiliaries; low-pressure desalination piping. | ASME B16.21; EN 1514-1. For drinking-water contact: WRAS approval and/or NSF/ANSI/CAN 61 as specified. AWWA C207 may govern large steel waterworks flange interfaces. |

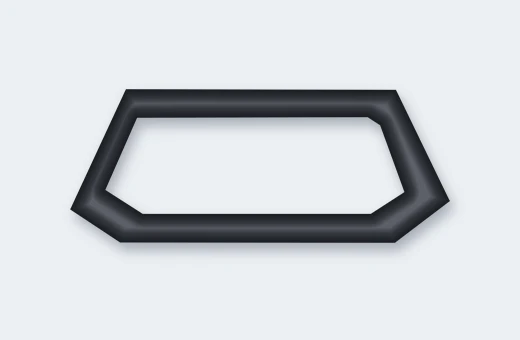

 | Rubber Pipe-Joint / Push-On Gasket | Provides watertight flexible joints in buried and above-ground pressure-water pipelines. | Molded EPDM, SBR or other approved elastomeric joint ring with application-specific lip or bulb geometry. | Ductile-iron water mains; raw-water and product-water networks; reclaimed-water systems; intake and discharge pipelines. | AWWA C111 for ductile-iron rubber-gasket joints; ISO 4633 and EN 681-1 for elastomeric joint-seal materials. NSF/ANSI/CAN 61 may apply for potable water. |
 | PTFE / ePTFE Flat Gasket | Chemical-resistant sealing where chlorine, hypochlorite, acids, caustics or aggressive treatment chemicals are present. | Virgin/filled PTFE, restructured PTFE or expanded PTFE flat gasket. | Chemical dosing skids; CIP systems; chlorination; antiscalant and acid/caustic lines; RO chemical-cleaning systems; corrosive utility piping. | ASME B16.21; EN 1514-1 for PN-designated flanges. NSF/ANSI/CAN 61 may apply where the selected material is used in potable-water contact. |
| PTFE Envelope Gasket | Combines chemical resistance with a compressible core for aggressive acids, caustics and glass-lined or corrosion-sensitive equipment. | PTFE envelope around compressed non-asbestos fibre or flexible graphite core. | Chemical dosing and regeneration systems; acid/caustic tanks; CIP equipment; glass-lined chemical equipment; specialty desalination process piping. | ASME B16.21 where dimensional scope applies; EN 1514-1 for compatible PN flanges. Chemical compatibility, purity and equipment-vendor specifications also govern. |
 | CNAF / Compressed Fibre Gasket | General-purpose sealing for water, mild chemicals, compressed air and utility systems. | Compressed non-asbestos fibre sheet using synthetic/inorganic fibres, fillers and elastomeric binder. | Pretreatment skids; utility water; low-pressure pumps and valves; service-water lines; air systems; ancillary plant piping. | ASME B16.21; EN 1514-1; purchaser/OEM specification. Potable-water use requires a material specifically approved for drinking-water contact. |
 | Spiral Wound Gasket (QSW3 / QSW4) | High-pressure flange sealing where recovery, pressure resistance and temperature capability exceed soft-gasket service. | Profiled metal winding with graphite, PTFE or mica filler; QSW3 outer ring or QSW4 inner and outer rings. | High-pressure RO feed systems with ASME flanges; energy-recovery auxiliaries; steam/thermal systems; high-pressure chemical or process piping. | ASME B16.20; mating flanges ASME B16.5 or ASME B16.47. Project piping specification governs filler and metallurgy. |
 | Camprofile / Kammprofile Gasket | Severe-service sealing where high pressure, thermal cycling, low bolt load or heat-exchanger service demands high recovery. | Grooved metallic core with graphite or PTFE facing; guide ring depending on flange type. | High-pressure desalination equipment; heat exchangers; pressure vessels; high-duty pump or process skids; thermal desalination auxiliaries. | ASME B16.20 for grooved metal gaskets with covering layers; EN 1514-6 for EN/PN flange systems; ASME B16.5/B16.47 for flange interfaces. |
 | Metal-Jacketed / Heat-Exchanger Gasket | Seals large heat exchangers and evaporator/condenser equipment where pressure, temperature and corrosion resistance are important. | Thin metallic outer jacket around resilient graphite or other filler; ribs can be incorporated for exchanger pass partitions. | MED/MSF thermal desalination; condensers; heat recovery; brine heaters; chemical/process heat exchangers; power-water cogeneration auxiliaries. | ASME B16.20 where applicable; TEMA exchanger requirements and equipment drawing/specification; ASME BPVC Section VIII where the exchanger is a pressure vessel. |
 | Precision O-Rings / Molded Elastomer Seals | Compact static and dynamic sealing in RO vessels, pumps, valves, instruments and dosing equipment. | Precision-molded EPDM, NBR, FKM, silicone or specialty elastomer depending on water chemistry and temperature. | RO membrane pressure vessels; cartridge filters; pump housings; valves; dosing pumps; instruments and analyzers. | ISO 3601 series for O-ring dimensions, tolerances and quality. ISO 4633 / EN 681-1 or NSF/ANSI/CAN 61 may apply for water-contact elastomers, depending on service. |
 | Plate Heat-Exchanger Gasket | Seals individual plates and separates process streams in gasketed plate heat exchangers. | Molded EPDM, NBR or FKM perimeter gasket, clipped or bonded to the plate depending on exchanger design. | Pretreatment and heat-recovery systems; thermal desalination auxiliaries; cooling-water systems; chemical and cleaning loops. | Equipment-manufacturer drawing/specification governs geometry. EN 681-1 / ISO 4633 may apply to elastomer materials in water service; NSF/ANSI/CAN 61 or WRAS may be required for potable-water contact. |
 | Mechanical Seal | Controls leakage around high-speed rotating pump shafts, including high-pressure seawater and RO pumps. | Precision stationary/rotating seal faces with springs, elastomeric secondary seals and metallurgy selected for seawater service. | Seawater intake pumps; high-pressure RO pumps; booster pumps; brine pumps; chemical dosing pumps; product-water pumps. | API 682 / ISO 21049 where specified for pump sealing systems; API 610 / ISO 13709 or ISO 5199 depending on pump specification; pump-OEM seal plan governs. |
 | PTFE / Graphite Compression Packing | Controls leakage around valve stems and slower-speed rotating or reciprocating shafts. | Braided PTFE fibre, graphite packing, or preformed graphite rings depending on chemical and temperature service. | Valves; chlorination systems; water-treatment pumps; mixers; chemical-dosing equipment; maintenance of legacy pump and valve equipment. | Valve/pump OEM specification and FSA/ESA packing installation guidance. Potable-water contact may require suitable approved materials; chemical compatibility must be verified. |
 | Expansion Joint / Flexible Coupling | Absorbs movement, vibration, settlement, pump surges and misalignment in large-diameter water piping. | Elastomeric/fabric non-metallic flexible joint with integral or floating flanges; material selected for seawater, potable water or chemical service. | Seawater intake/outfall lines; pump suction/discharge; RO plant headers; product-water piping; wastewater and utility-water systems. | ASTM F1123 for arch-type non-metallic expansion joints; FSA expansion-joint guidance; AWWA C219 may apply where a bolted sleeve-type flexible coupling is used instead. |
 | Flange Insulation Kit / Insulating Gasket | Provides electrical isolation and helps manage galvanic or cathodic-corrosion systems at flanged joints. | High-strength insulating gasket plus full-length sleeves, insulating washers and steel washers. | Seawater pipelines; metallic intake/outfall piping; buried water transmission lines; mixed-metal piping; cathodically protected systems. | AMPP/NACE SP0286 for electrical isolation of cathodically protected pipelines; ASME B16.5/B16.47 or AWWA C207 for applicable flange dimensions; project corrosion-control specification. |
 | Oil Seal / Bearing Isolator | Protects pump, motor and gearbox shafts and bearings from lubricant loss and water/contaminant ingress. | Elastomeric radial shaft lip seal or non-contact labyrinth-style bearing isolator. | High-pressure pumps; seawater pumps; motors; blowers; energy-recovery units; auxiliary rotating equipment. | ISO 6194 series for rotary-shaft lip seals; pump/motor OEM requirements. API 610/ISO 13709 may apply where process-pump bearing arrangements are specified to those standards. |
 | Hydraulic Seals / V-Ring Packing | Seals actuators, hydraulic cylinders and reciprocating components used in valves, gates and maintenance equipment. | Urethane/elastomer V-rings, Chevron packing, O-rings and engineered hydraulic seals. | Valve actuators; intake gates; sluice and isolation systems; hydraulic skids; maintenance equipment in water/desalination plants. | ISO 7425-1/-2 for hydraulic-cylinder seal housings; ISO 3601 where O-rings are used; actuator/equipment-OEM specification. |
These are typical starting points. Final selection depends on your service conditions and is confirmed with QGER engineering before manufacture.
Points to watch
- Seawater and brine pit ordinary stainless steel. Tell us the chloride level and temperature so we can pick the metal for rings and windings.
- Use only approved elastomers on drinking water. Ask for WRAS-approved EPDM where your specification requires it.
- Where flanges of different metals meet, an insulation kit stops galvanic corrosion.
